Product Description
This is a GodHand Drill Bit C set of 8 Drill Bits for plastic model buiding and other projects.
Recommended Pin vice : GH-PBS-DC GodHand Micro Power Pin Vise
Increased work accuracy and efficiency! Exclusive drill bit for models!
Drill bit is designed exclusively for models which have never existed before.
The drill tip features a specially designed obtuse angle for stable cutting.
Thanks to the cutting edge on the tip, it is easy to penetrate the surface with light force.
Holes are less distorted, making it easy to create near-perfect circles.
Perfect match for the Spin Blade Series (sold separately)!
(C) Shaft diameter: 3.0 mm / Drill diameter: 1.1 mm, 1.2 mm, 1.3 mm, 1.4 mm, 1.6 mm, 1.7 mm, 1.8 mm, 1.9 mm (8pcs set)
Obtuse cutting edge for easy and clean hole drilling even by hand. Shallow drilling prevents piercing through plastic boards.
Each size features an exquisite length for easy handling. Shorter cutting edges than general drill blades allow for a closer focal distance to the target for easy targeting and less blurring.
The shaft size is standardized to 2.5 mm to 3 mm, eliminating the need to replace the collet and thus increasing work efficiency.

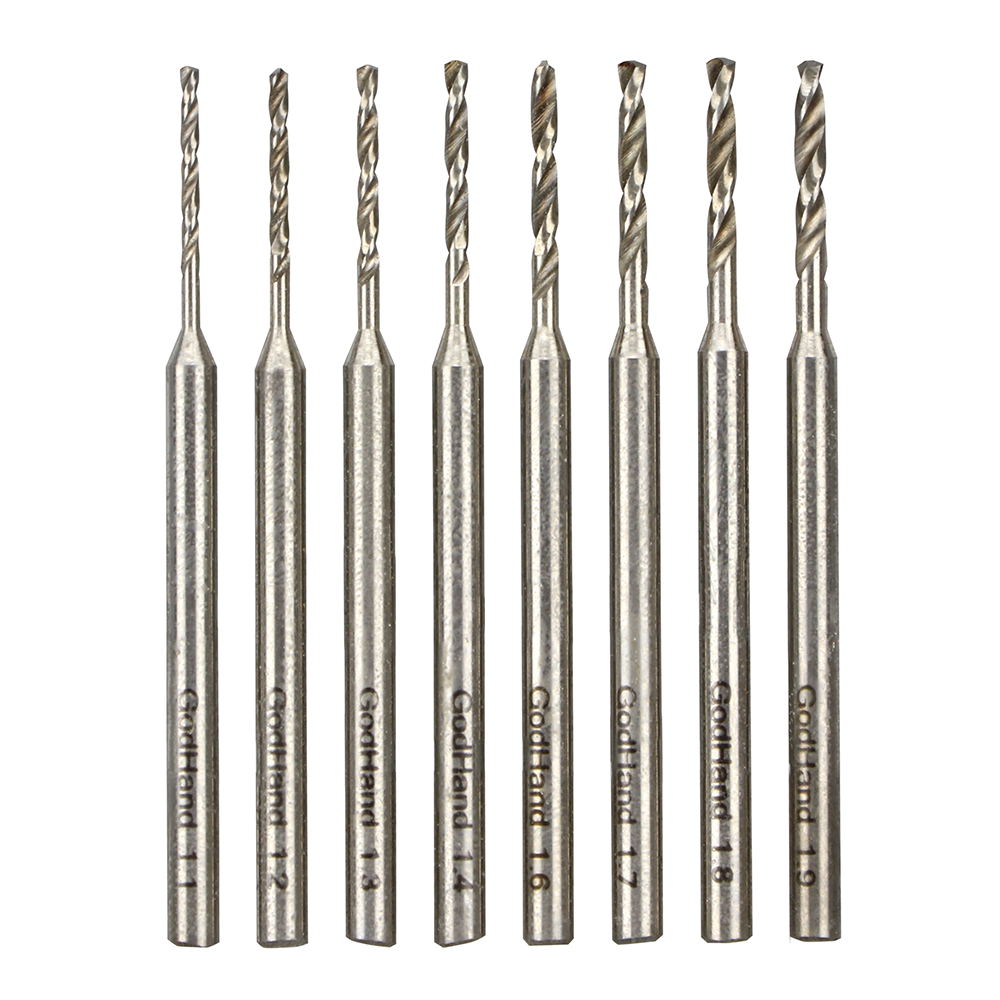

Drill Bit 8pcs Set C
・Material: Special tool steel
・Hole diameter: 1.1 mm, 1.2 mm, 1.3 mm, 1.4 mm, 1.6 mm, 1.7 mm, 1.8 mm, 1.9 mm

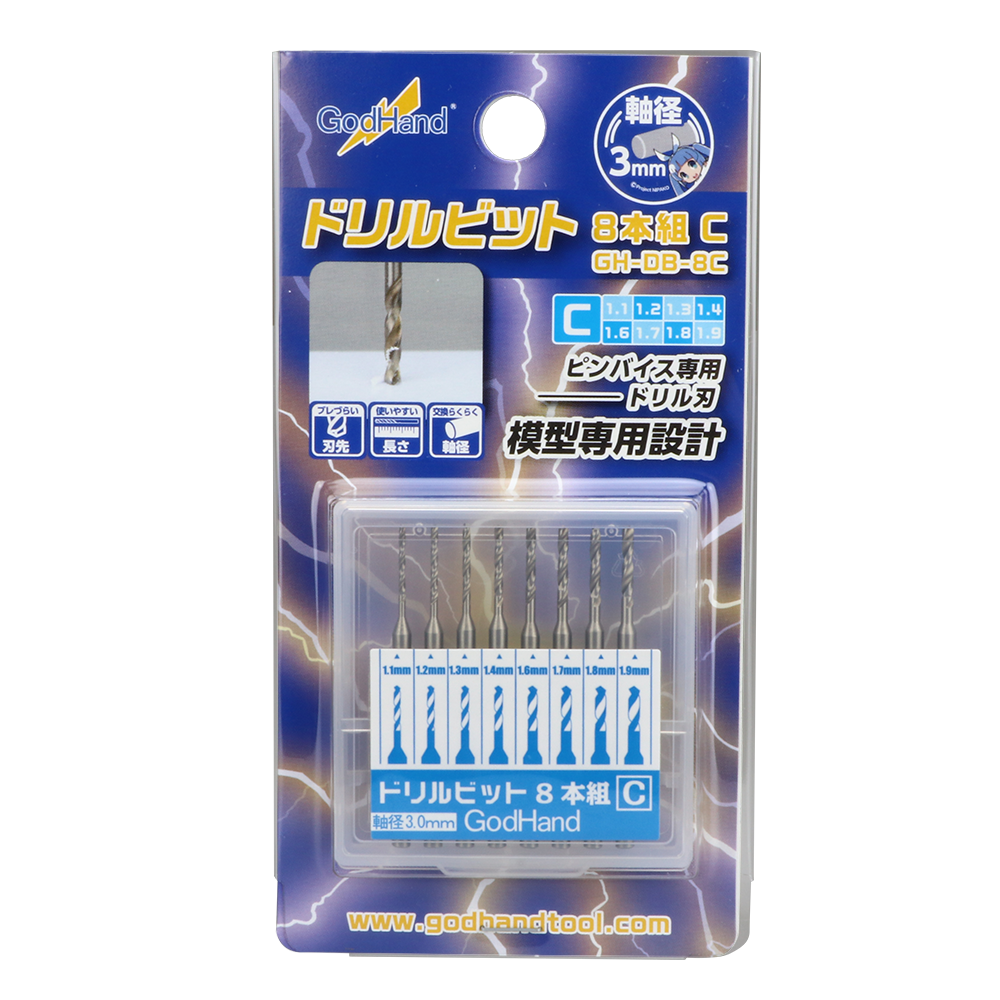

・Case: PP　
・Shaft thickness: 3.0 mm　
・Made in China
NOTE
・Please fix the pin vise firmly in place before use.
・Please do not apply lateral force to the tapered portion. Apply excessive force laterally may cause the drill blade to break.
・Please be sure no one is around and wear protective glasses.
　Cutting materials or broken blades in the eyes may cause blindness.
・Blades made of hard metal, however, may damage or injure unexpectedly if excessive force is applied or improperly used.
・After use, wipe with a dry cloth, lubricate with oil, and place in the case.
・Please be careful to avoid injury
・Please do not apply a load exceeding the capacity.
